Here is the pre-launching and boarding safety procedure checklist for the VIKING Norsafe Lifeboat (Model JYN-57):
Make sure to adhere to all safety warnings and operational limits as outlined in the manual.

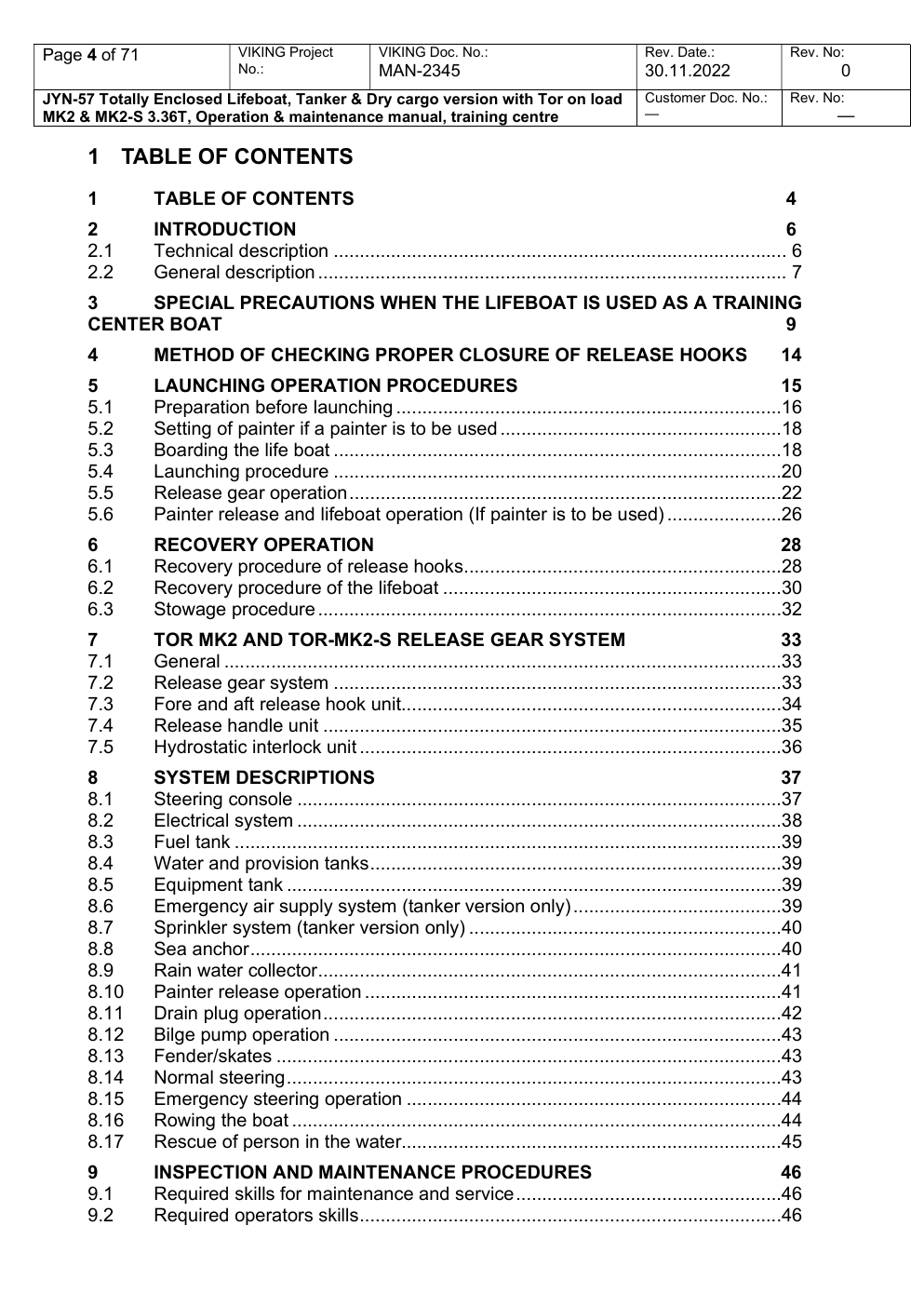

...Boarding the life boat ......................................................................................18 5.4 Launching procedure ......................................................................................20 5.5 Release gear operation...................................................................................22 5.6 Painter release and lifeboat operation (If painter is to be used)......................26 6 RECOVERY OPERATION 28 6.1 Recovery procedure of release hooks.............................................................28 6.2 Recovery procedure of the lifeboat .................................................................30 6.3 Stowage procedure.........................................................................................32 7 TOR MK2 AND TOR...

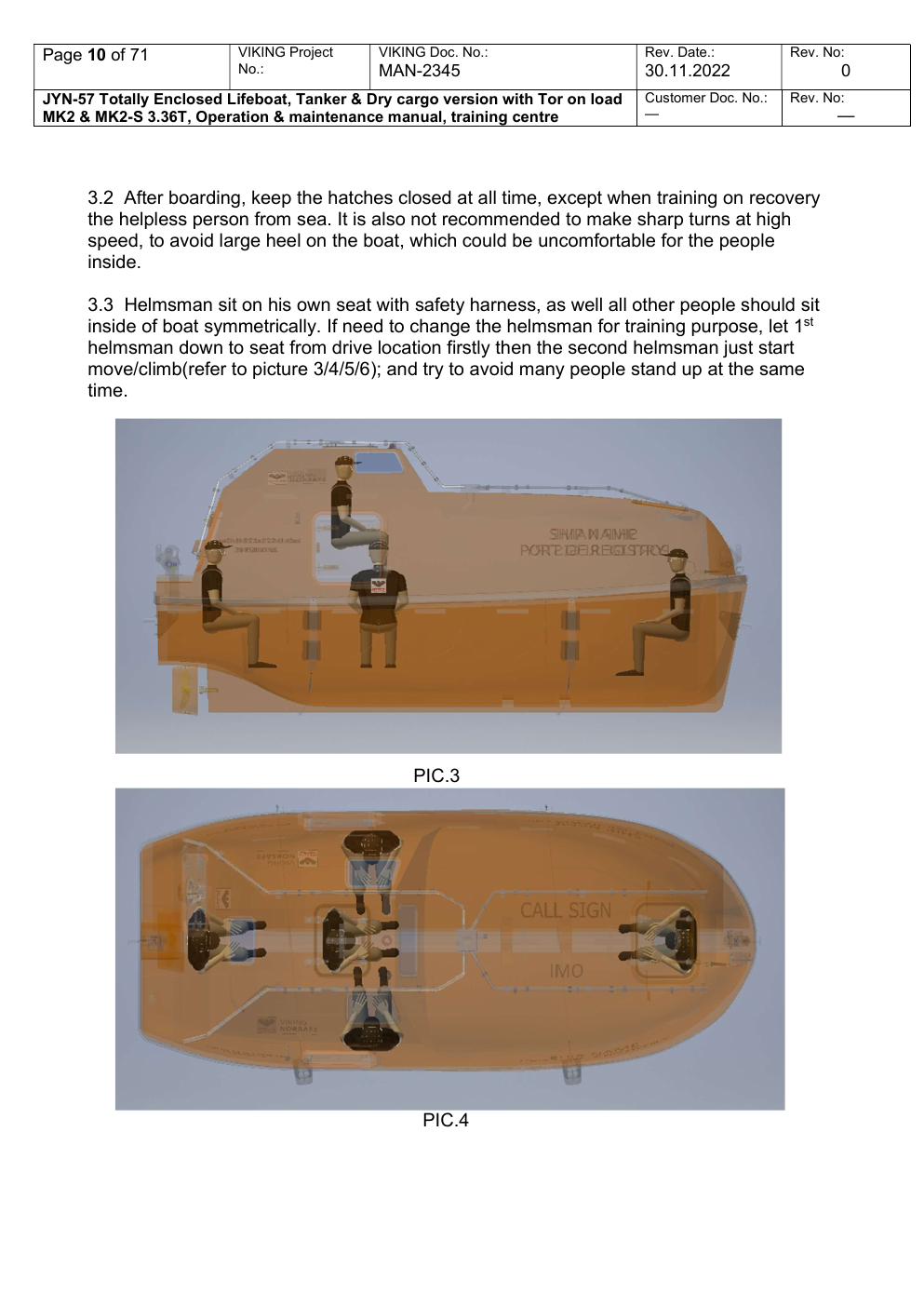

...3.3 Helmsman sit on his own seat with safety harness, as well all other people should sit inside of boat symmetrically. If need to change the helmsman for training purpose, let 1 st helmsman down to seat from drive location firstly then the second helmsman just start move/climb(refer to picture 3/4/5/6); and try to...

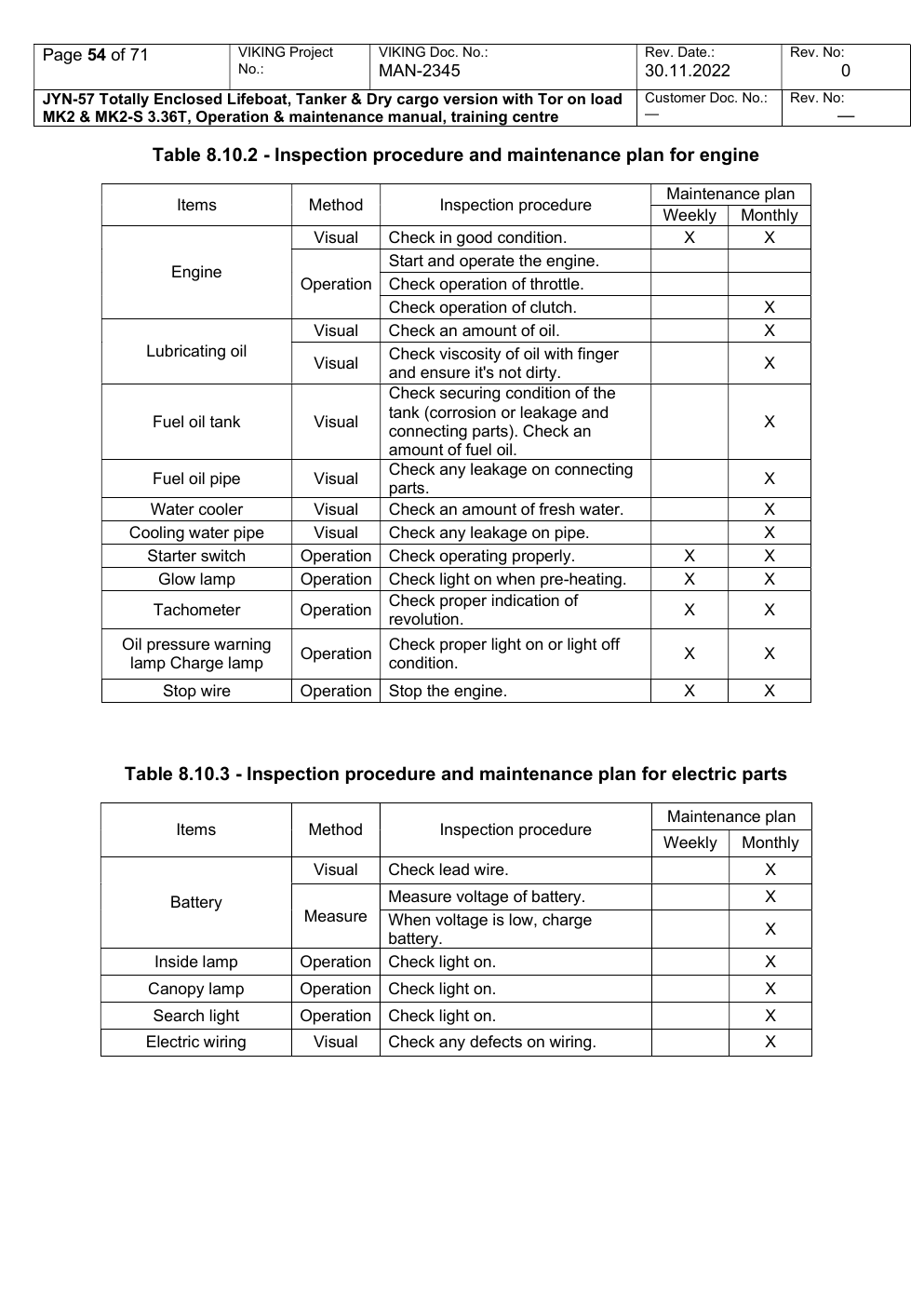

...X X Glow lamp Operation Check light on when pre-heating. X X Check proper indication of Tachometer Operation revolution. X X Oil pressure warning Operation Check proper light on or light off X X lamp Charge lamp condition. Stop wire Operation Stop the engine. X X Table 8.10.3 - Inspection procedure and maintenance plan for electric parts Maintenance...

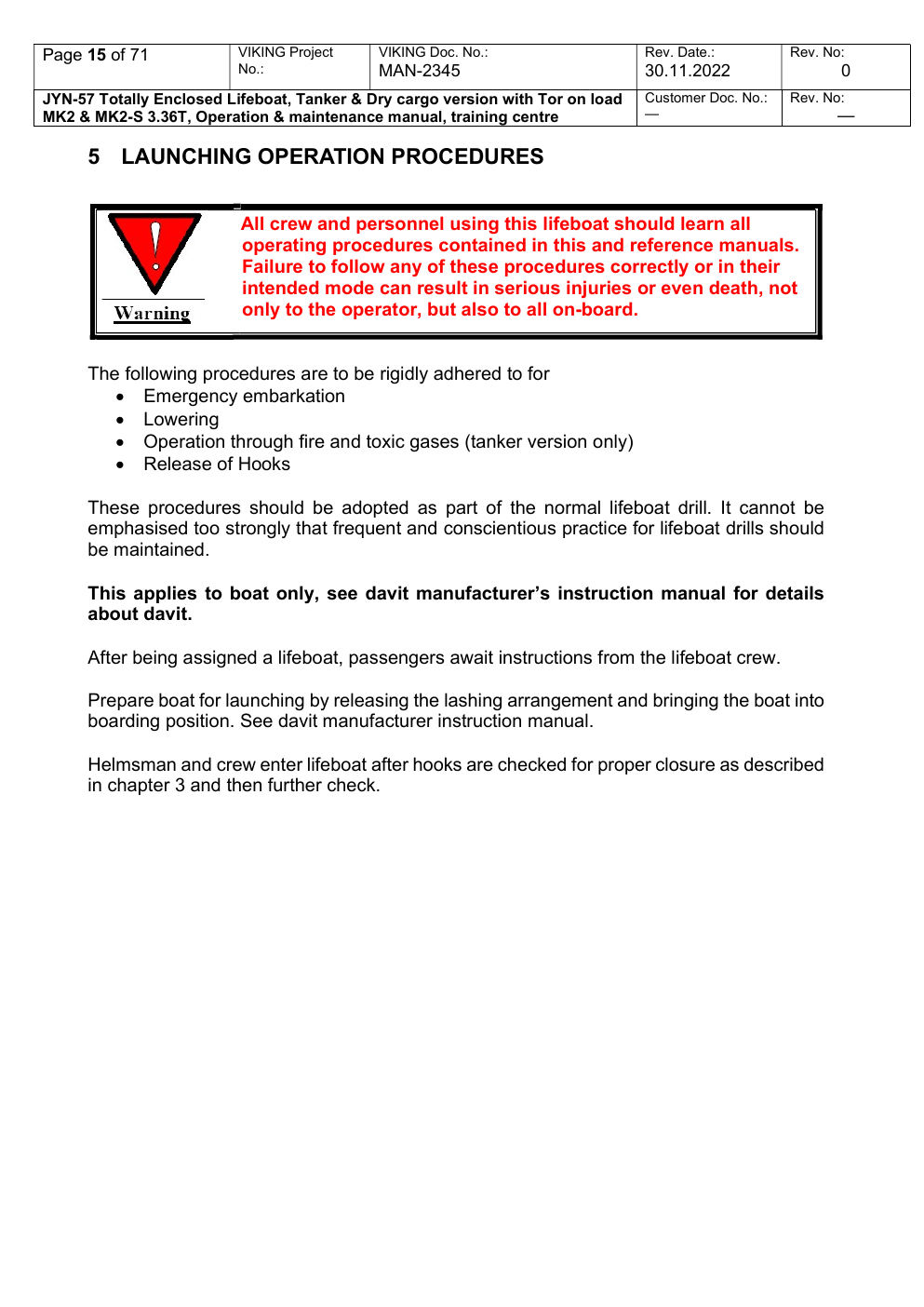

...Prepare boat for launching by releasing the lashing arrangement and bringing the boat into boarding position. See davit manufacturer instruction manual. Helmsman and crew enter lifeboat after hooks are checked for proper closure as described in chapter 3 and then further check.
